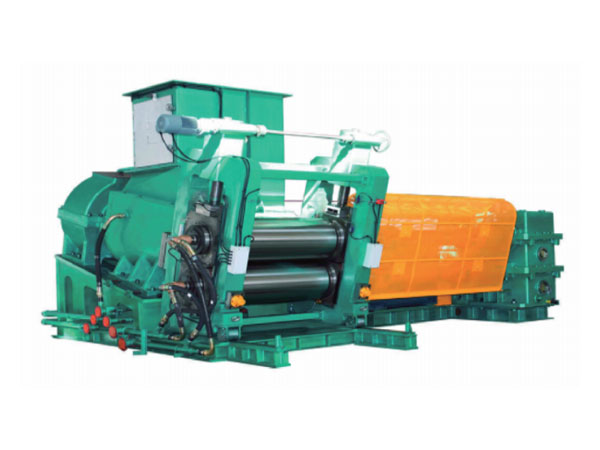

It is used for continuously extruding and sheeting plasticated rubber, master batch and final batch into as a downstream auxiliary of internal mixer.
1.It consists of twin screw extruder and two roll sheeting machine.
2.Sheeting machine part is portable ,which is convenient to maintenance and clean.
3.Sloping structure at the bottom of machine make rubber flow smoothly and reduce inner cavity residue.
4.Surface of screw ,barrel, hopper is coated with wear resistant alloy to enhance service life.
|
型號 Model |
XJY-SZ602X250 | XJY-SZ743X330 | XJY-SZ936X416 | XJY-SZ1093X486 | |
|---|---|---|---|---|---|
|
螺桿形狀 Shape of screw |
變距變深全收斂式錐形 Variable pitch and depth conical screw |
||||
|
螺桿數(shù)量 Quantity of screw |
2 | ||||
|
螺桿中心線排列 Arrange of screw central-line |
帶角度 With angle | ||||
|
螺桿直徑(mm) Screw diameter |
Φ602XΦ250 | Φ743XΦ330 | Φ936XΦ416 | Φ1093XΦ486 | |
|
螺桿轉速(r/min) Screw speed |
2.2~22 |
2~20 (2.65~26.5) |
2.2~22 (2.8~28) |
1.8~18 | |
|
擠出電機功率(kw) Motor power of extruder |
90 | 160(132) |
220、250 （180、200） |
355 | |
|
壓片輥尺寸（DXL）/mm Sheeting roll size |
Φ400x800 | Φ450x1000 | Φ508x1070 | Φ610x1400 | |
|
壓片輥轉速(r/min) Sheeting roll speed |
2.5~25 | 2.5~25 (3.2~32) | 3.0~30 | 2.5~25 | |
|
輥筒工作調距間隙/mm Nip range |
3~10 | ||||
|
外型尺寸/mm Overall dimensions |
長(L) | 4570 | 4600 | 5700 | 6850 |
| 寬(W) | 4320 | 5200 | 5740 | 6700 | |
| 高(H) | 2720 | 2600 | 3600 | 3870 | |
|
重量/t Weight |
24.5 | 30 | 46 | 65.6 | |
|
配套密煉機總容積/L Total volume of matched internal mixer |
160 | 270 | 370 | 650 | |
