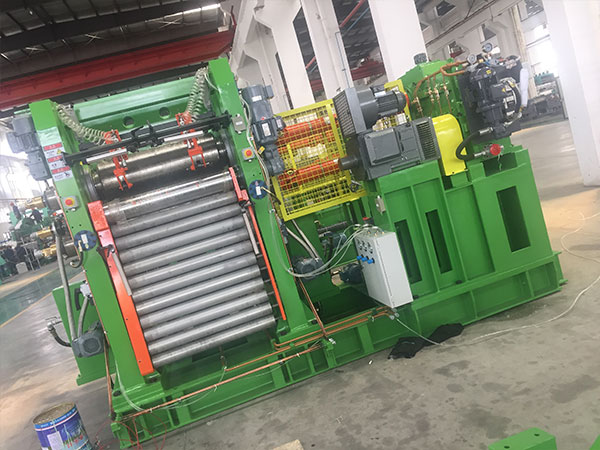

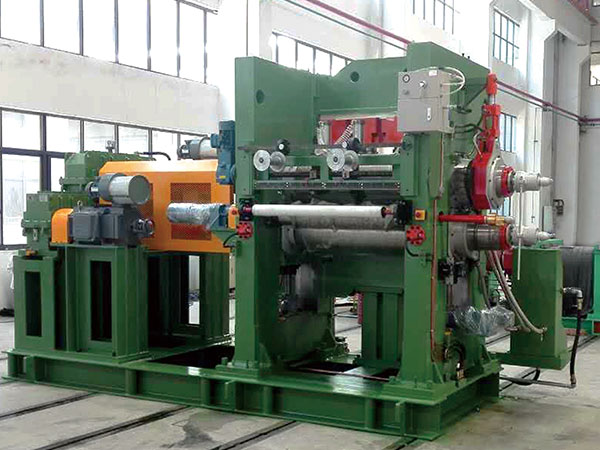

It is mainly used for calendaring rubber products such as tyre , conveyor belt ,rubber sheet etc.
1.It adopts peripheral drilled roll with good heating and cooling effects.
2.Axis cross ,pre-loading are set on rolls to ensure the product’s precision.
3. It can be equipped with hydraulic locking device which can match wide head extruder.
|
型號 Model |
XY-2I(F)760 | XY-2I(F)900 | XY-2I(F)1100 | XY-2I(F)1400 | XY-2I(F)1530 | XY-2I(F)1600 | XY-2I(F)1730 | XY-2I(F)2030 | XY-2I(F)2600 | XY-2I(F)2800 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
輥筒直徑(mm) Roll diameter |
305 | 360 | 400 | 450 | 510 | 560 | 610 | 660 | 710 | 820 | |
|
輥筒工作長度(mm) Roll working length |
760 | 900 | 1100 | 1400 | 1530 | 1600 | 1730 | 2030 | 2600 | 2800 | |
|
驅(qū)動輥線速度(m/min) Drive roll liner speed |
1.7～17 | 2～20 | 2～20 | 2～20 | 2～20 | 2～20 | 2～20 | 2～20 | 2～20 | 2～20 | |
|
制品寬度(mm) Max.product width |
550 | 700 | 900 | 1200 | 1300 | 1400 | 1500 | 1800 | 2400 | 2500 | |
|
制品小厚度(mm) Min.product thickness |
0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
|
電機(jī)功率(kw) Motor power |
22 | 37 | 45 | 55 | 55 | 75 | 90 | 110 | 132 | 160 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 4180 | 4550 | 4290 | 5450 | 5780 | 5850 | 6650 | 7840 | 8870 | 10100 |
| 寬(W) | 1530 | 1700 | 1760 | 1990 | 1580 | 1680 | 2450 | 2440 | 2770 | 2880 | |
| 高(H) | 2220 | 1790 | 2420 | 2310 | 2520 | 2700 | 3590 | 3720 | 4310 | 3970 | |
|
重量(t) Weight |
6 | 9 | 11 | 12 | 21 | 25 | 45 | 60 | 72 | 81 | |
