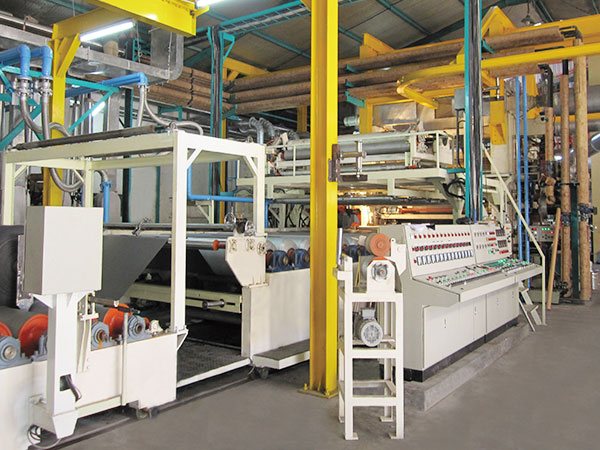

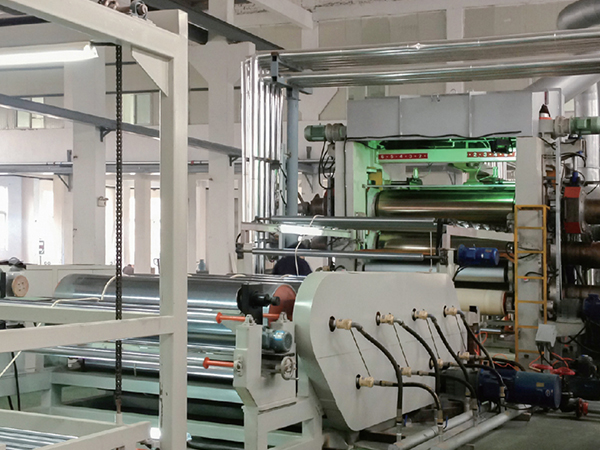

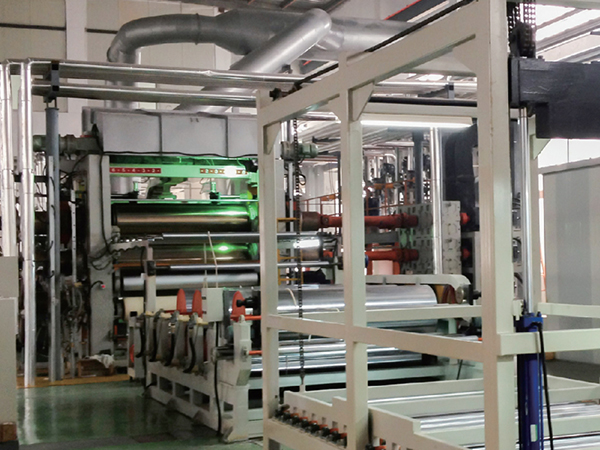

This production line is used to produce sofa leather, nylon tape, waterproof cloth, luggage leather, clothing leather and etc.

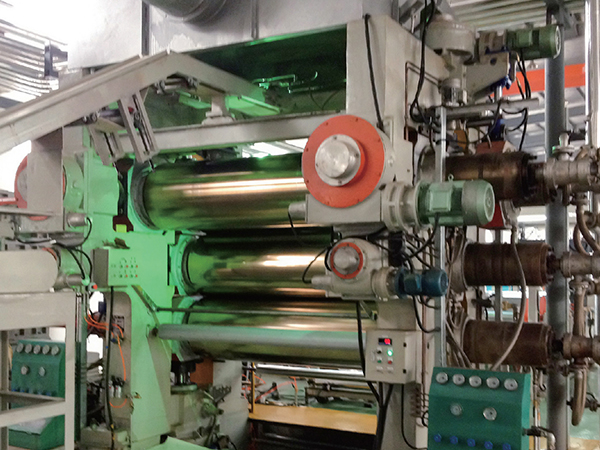

1.It is composed of four- roll calender, cooling device, auto-cutting & winding up device, etc.
2.Rolls adopt peripheral drill structure with heat grinding treatment, single motor and single drive with stable transmission and adjustable speed.
3.Axis cross ,pre-loading，pull-back device are set to ensure the product’s precision.
4.Control system adopts PLC, safety and reliability , easy operation and high automation.
|
型號 Model |
SY-4Γ1120 | SY-4Γ1400 | SY-4Γ1730 | SY-4Γ1830 | SY-4Γ1900 | SY-4Γ2030 | SY-4Γ2300 | SY-4Γ2600 | SY-4Γ2800 | SY-4Γ3300 | SY-4Γ4000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
輥筒直徑 Roll diameter |
360 | 400 | 560 | 610 | 610 | 610 | 660 | 710 | 760 | 810 | 863 |
|
輥筒工作長度 Roll working length |
1120 | 1400 | 1730 | 1830 | 1900 | 2030 | 2300 | 2600 | 2800 | 3300 | 4000 |
|
生產線速度(m/min) Speed of production line |
2.3-23 | 2.8-28 | 5-50 | 6-60 | 6-60 | 6-60 | 7-70 | 7-70 | 7-70 | 7-70 | 7-70 |
|
制品寬度 Max.product width |
900 | 1200 | 1500 | 1600 | 1650 | 1680 | 1900 | 2200 | 2400 | 2900 | 3600 |
|
制品厚度 Product thickness |
0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 |
|
電機功率 Motor power |
55 | 75 |
37×2 55×2 |
37×2 55×2 |
55×2 75×2 |
55×2 75×2 |
75×2 90×2 |
90×2 110×2 |
110×2 132×2 |
110× 160×2 |
132×2 185×2 |
|
生產能力 (t / year) Production capacity |
～4000 | ～5000 | ～6200 | ～6500 | ～7000 | ～7200 | ～8000 | ～9000 | ～10000 | ～12000 | ～15000 |
